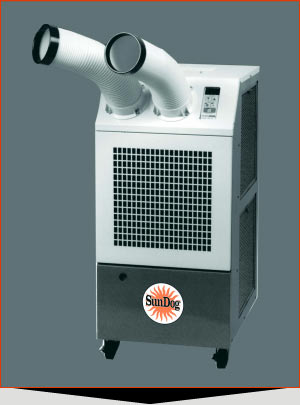

SunDog Portable Cooling
|
MODEL |
CLASSIC 10 |
CLASSIC 24 |
CLASSIC 40 |
CLASSIC PLUS 14 |
|
COOLING
|
10,000 BTU/H |
26,000 BTU/H |
39,000 BTU/H |
14,000 BTU/H |
|
ELECTRICAL CHARACTERISTICS |
1 Phase
115 V |
1 Phase
208/230 V |
3 Phase
220V |
1 Phase
115 V |
|
EVAPORATOR FAN |
270 CFM |
708 CFM |
1060 CFM |
440/380 CFM |
|
DIMENSIONS
(WxDxH) |
19 x 26 x 41 |
19 x 29 x 47 |
26 x 43 x 39 |
19 x 26 x 41 |
|
WEIGHT |
145 lbs. |
235 lbs. |
353 lbs. |
170 lbs. |
|
|
|
|
|
SunDog Portable Package Systems
|
For larger applications, use one of SunDog's versatile, powerful and economical Package Systems.
These units are the cost-effective alternative to renting several smaller units.
Call the professionals at SunDog to see how these larger units are ideally suited for your large-scale heating needs.
|
|
MODEL |
5 TON |
10 TON |
20 TON |
|
POWER SUPPLY |
208/230 1 Phase |
208/230 3 Phase |
230/460 3 Phase |
|
BREAKER SIZE |
55 Amps |
70 Amps |
150/70 AMPS |
|
EVAPORATOR FAN |
2000 CFM |
4400 CFM |
8000 CFM |
|
DIMENSIONS
(HxWxD) |
55 x 50 x 44 |
91x 58 x 57 |
117 x 69 x 49 |
|
WEIGHT |
475 lbs. |
1200 lbs. |
1870 lbs. |
|
WHEELS |
8" pneumatic |
10" pneumatic |
Trailer Mounted |
|
|
|
|
|
